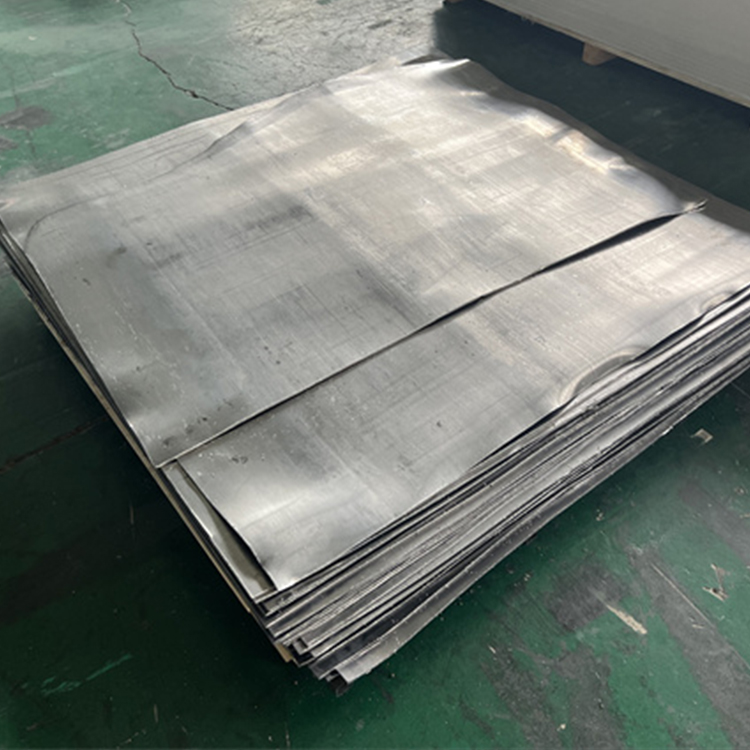

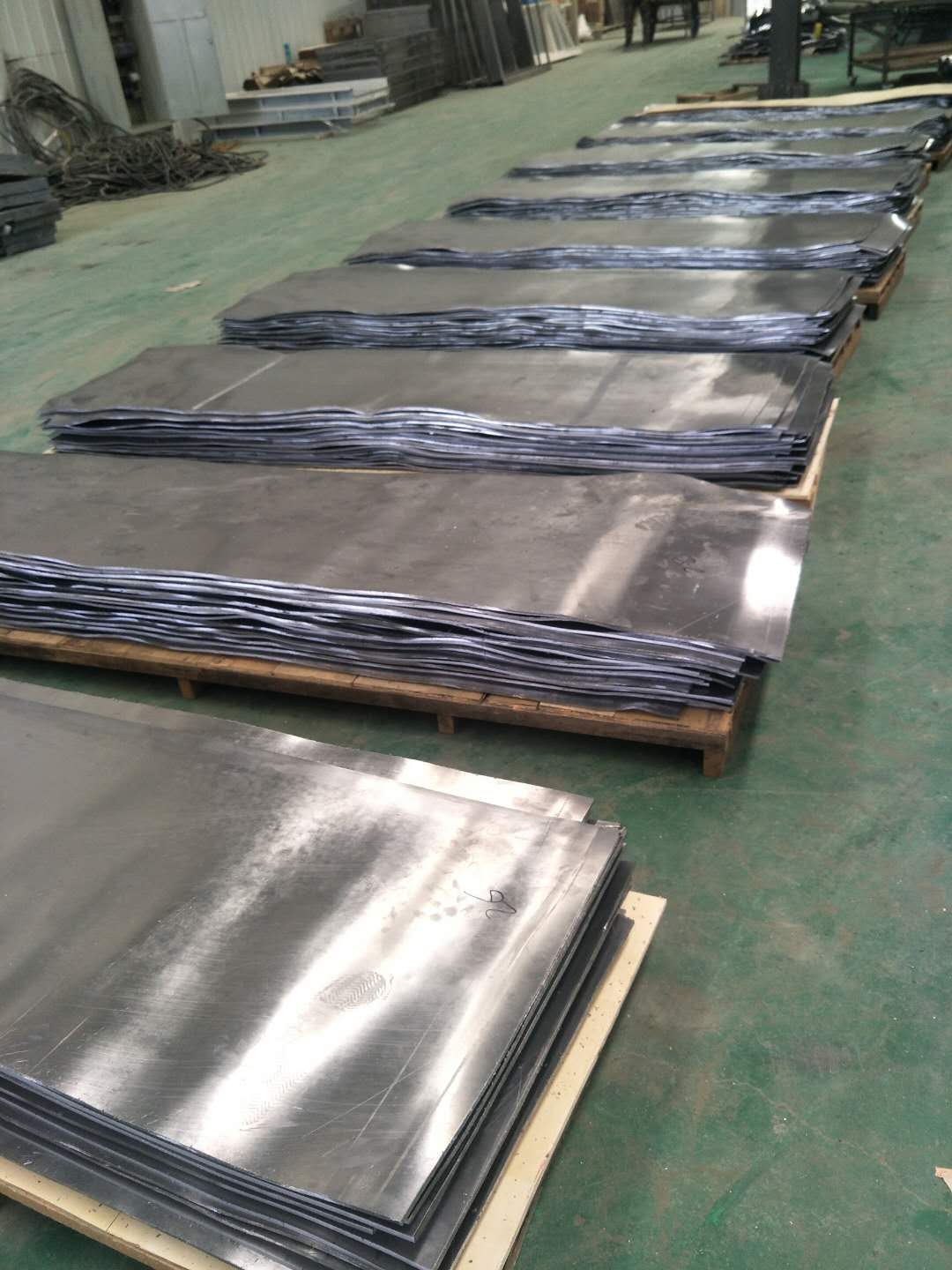

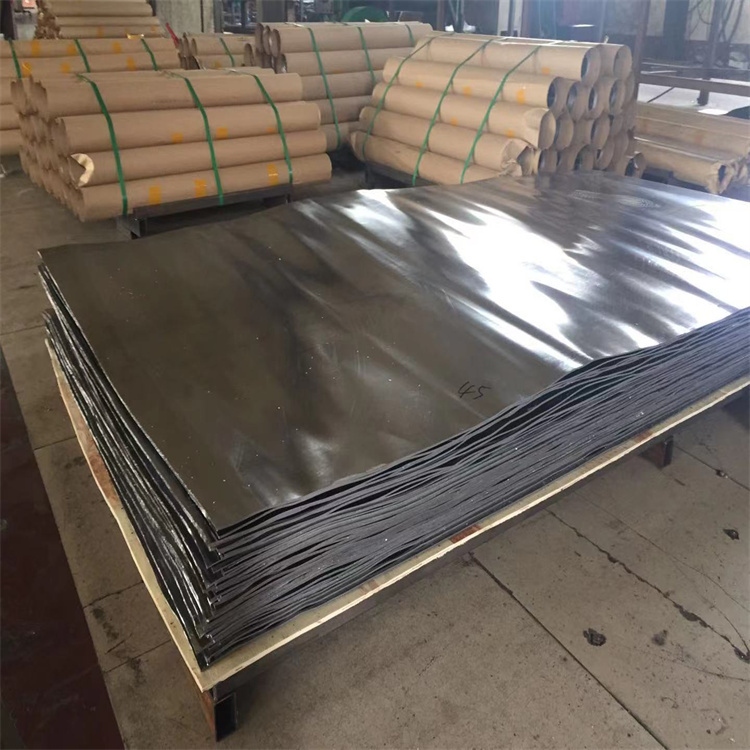

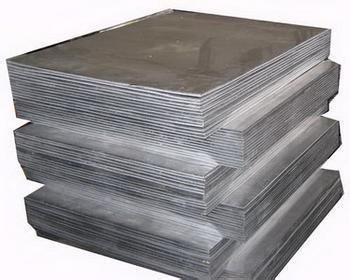

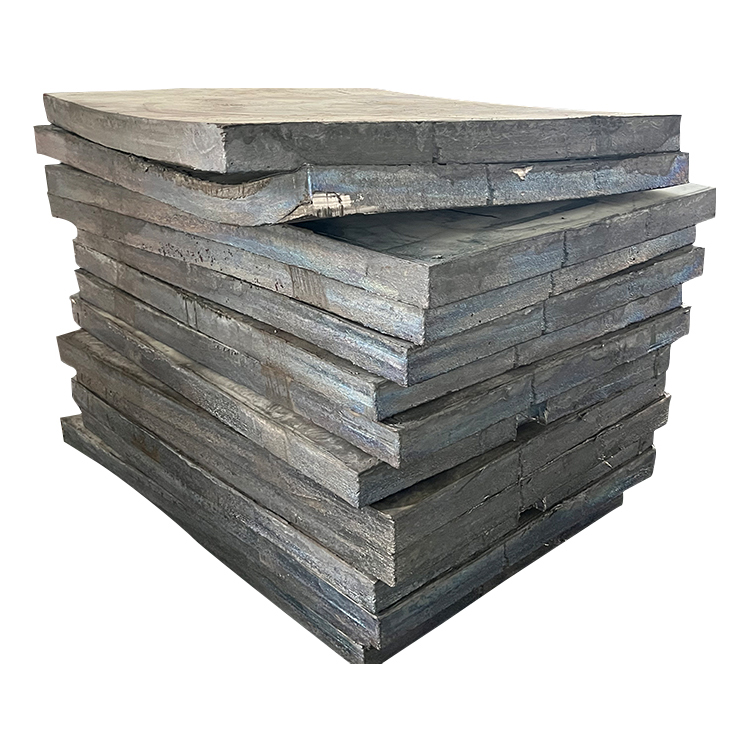

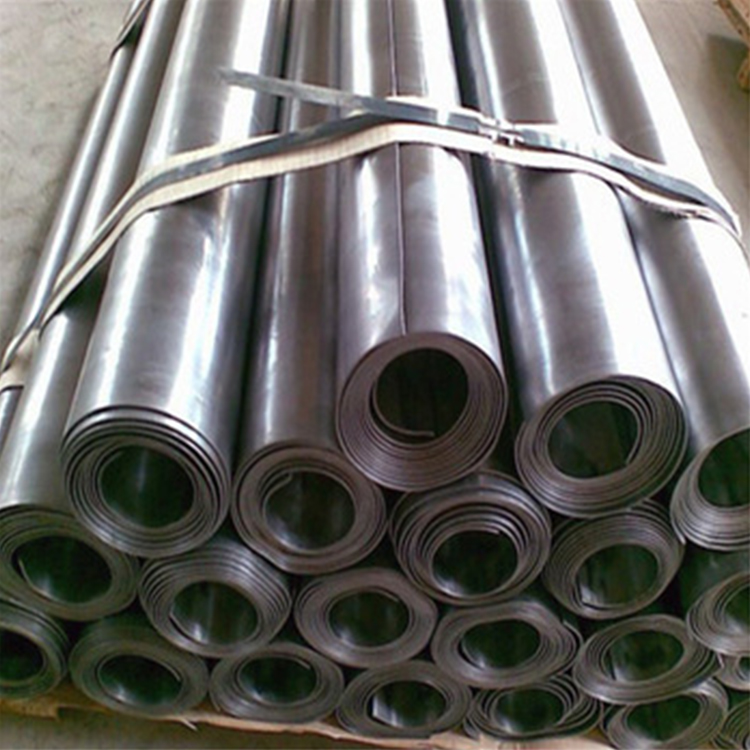

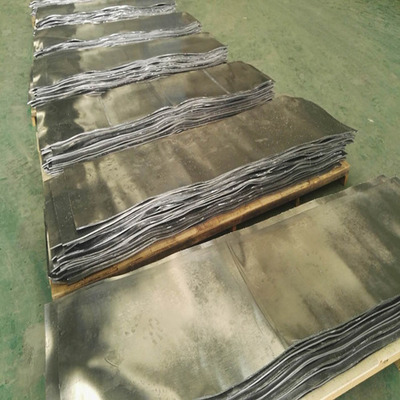

Lead Plate
Lead plate or sheet is a preferred solution for radiation shielding in many applications, including X-ray shielding, tank lining, acoustic shielding and nuclear shielding. We offer lead plate in almost any thickness and size. To request a quotation on an exact specification of lead sheet you require, please call us or send a email. Regardless of the specialized you are considering, we are available to offer appropriate options to meet your needs， We offer lead plate in thicknesses ranging from 1/64″ up to 5″.
Lead Plates are commonly used as a permanent installation to line walls, floors and ceilings, along with medical, industrial, nuclear and transportation applications.
| Lead Thickness Chart | |||
| Thickness Fractions | Decimal Equivalent | Mm Equivalent | Pounds per Square Foot* |
| 1/64″ | .0156″ | 0.3969mm | 1# |
| 1/32″ | .0313″ | 0.795mm | 2# |
| 1/24″ | .042″ | 1.067mm | 2 1/2# |
| 3/64″ | .047″ | 1.193mm | 3# |
| 1/16″ | .0625″ | 1.5875mm | 4# |
| 5/64″ | .078″ | 1.9812mm | 5# |
| 3/32″ | .094″ | 2.3876mm | 6# |
| 1/8″ | .1250″ | 3.1750mm | 8# |
| 5/32″ | .1562″ | 3.9675mm | 10# |
| 3/16″ | .1875″ | 4.7625mm | 12# |
| 1/4″ | .2500″ | 6.3500mm | 16# |
| 3/8″ | .3750″ | 9.5250mm | 24# |
| 1/2″ | .50″ | 12.7000mm | 30# |
| 3/4″ | .75″ | 19.0500mm | 46# |
| 1″ | 1.00″ | 25.4000mm | 60# |
| 1-1/2″ | 1.50″ | 38.1000mm | 90# |
| 2″ | 2.00″ | 50.8000mm | 120# |
| * Approximately | |||
| All sheet lead is manufactured per ASTM and federal specifications. Cut sizes available. These products and materials are for medical, industrial, building, waterproofing and shielding applications. The weights listed are for common lead only. | |||
FAQ
How about your price?
The price is negotiable. it can be changed according to the quantity, package, payment method, etc. When you are making an inquiry, please let us know the details as possible.
Do you provide sample？
Sample is free with freight cost collected, which shows our joint efforts and efforts for cooperation.
Do you support OEM?
Yes, OEM is fully supported.
Can the packaging be customized?
Yes, package can be customized.
Why we choose to cooperate with you?
Strong company strength, first-class product quality, competitive price and excellent service are the reasons why we can develop and grow in the fierce. And that’s also being huge advantages for us.
What is the MOQ?
Negotiate according to the order and the actual situation.
